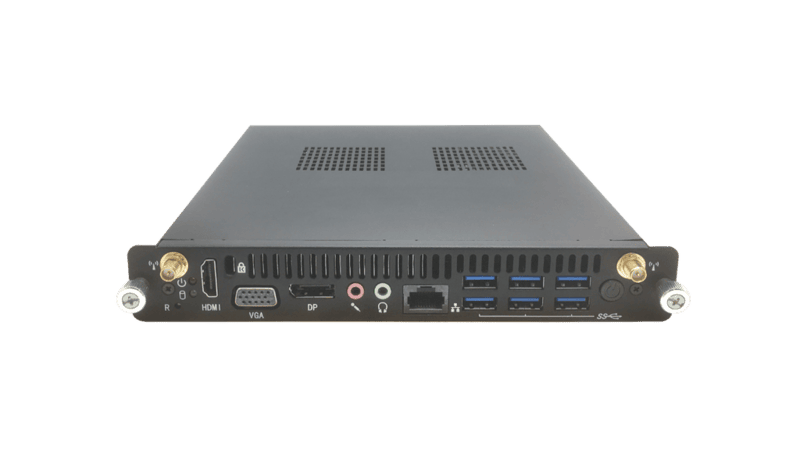

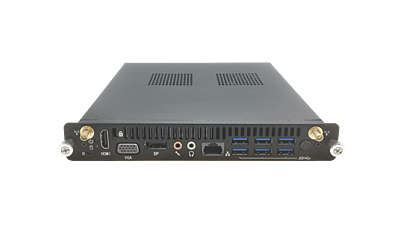

Hikvision DS-D5AC | Windows OPS Module
Tags:
OPS Module
- Intel UHD Graphic, support H.265 and 4K resolution
- Support M.2 nvme system disk quick start
- Support 3 USB 3.0 ports, 3 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port
- Support dual channel memory
- Support Wi-Fi IEEE 802.11 a/b/g/n/ac
i5 PDF
i7 PDF
- Select Processor
- Quantity
Product Details
- ProcessorIntel® Core i5 9400H
- CPU Clock Speed2.5GHz
- Platform ArchitectureIntel® Coffeelake
- PCHIntel® Z370
- GraphicsIntel® UHD Graphics 630
- Memory8G
- Storage256G
- NICIntegrated 10/100/1000M Adaption
- Cooling SystemSingle Brass & Single Fan
- Network InterfaceRJ45×1
- Data Transmission InterfaceBluetooth 4.2
- Antenna2
- Video OutputHDMIx1, DPx1
- Input Voltage12V-19V DC
- Max. Consumption60W
- Standby Consumption0.5W
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
- ColorBlack
- Product Dimensions (W × H × D)180×195×30mm
- Net WeightAbout 1.24kg
- Built-In System
- Operation SystemWIN10 SAC
- Processor
Intel® Core, i7 11th
- CPU Clock Speed2.8GHz
- Memory8G * 2
- NICIntegrated 10/100/1000M Adaption
- GraphicsIntel® Iris® Xe Graphics
- Platform ArchitectureIntel® Tiger Lake
- Storage512G
- Cooling SystemSingle Brass & Single Fan
- Interface
- Network InterfaceRJ45 * 1
- Data Transmission Interface
Bluetooth 4.2
USB 3.0 * 3；USB 2.0 * 3；Type-C * 1
- Video OutputHDMI * 1; DP * 1
- Antenna2
- Power
- Standby Consumption0.5W
- Input Voltage12V-19V DC
- Max. Consumption95W
- General
- Product Dimensions (W × H × D)195×30×180mm
- Package Dimensions (W × H × D)
Carton with a single module : 308 * 80 * 278 mm
Carton with five modules : 420 * 298 * 320 mm
- Net WeightAbout 1.22kg
- Gross Weight
Carton with a single module : about 1.36 kg
Carton with five modules : about 7.50 kg
- ColorBlack
- Working Environment
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
i5 OPS:
DS-D5AC11T5-8S2
Built-In System
Interface
Power
Working Environment
General
i7 OPS
DS-D5AC11T7-16S5
